$26,695.00
Audix ADX 20 i-p Miniature Condenser Clip-on Microphone—
$26,695.00
The Story

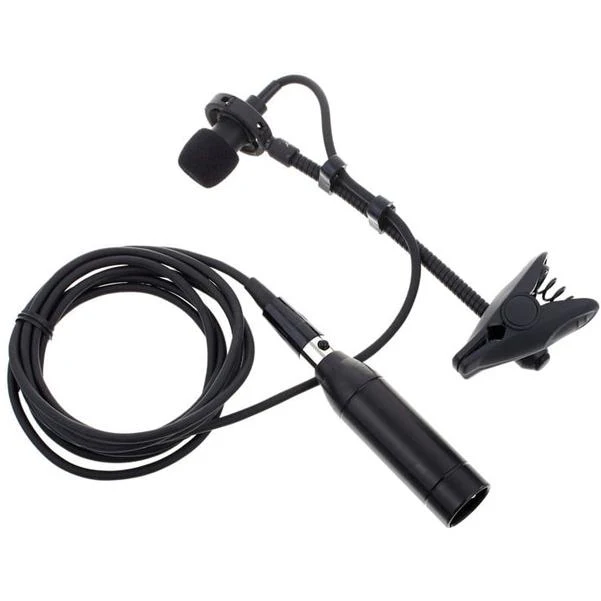

Audix ADX 20 i-p Miniature Condenser Clip-on Microphone Overview:
The ADX20iP miniature condenser microphone is applicable for professional stage and studio applications. This microphone is primarily used for miking most reed and brass instruments.
The ADX20iP has a uniformly controlled cardioid polar pattern, which provides excellent isolation and feedback control on stage with natural sound reproduction at very close distances.
The ADX20iP condenser instrument microphone is lightweight, compact and simple to use. Included with the ADX20iP is a gooseneck clip with spring tension for easy mounting to the bell of an instrument.
- Saxophone
- Trombone, trumpet
- Room ambience, recording
- Accordion
The ADX20i is designed for use with Audix wireless systems. The ADX20iP is designed
for use with a standard microphone cable. The ADX20iP operates on phantom
voltage of 5-52 Volts and is supplied with a phantom power adapter (APS910), 6’
integrated microphone cable, gooseneck clip (MC20i) and carrying pouch.
Features:
The ADX20iP miniature condenser microphone is applicable for professional stage and studio applications. This microphone is primarily used for miking most reed and brass instruments.
The ADX20iP has a uniformly controlled cardioid polar pattern, which provides excellent isolation and feedback control on stage with natural sound reproduction at very close distances.
The ADX20iP condenser instrument microphone is lightweight, compact and simple to use. Included with the ADX20iP is a gooseneck clip with spring tension for easy mounting to the bell of an instrument.
- Saxophone
- Trombone, trumpet
- Room ambience, recording
- Accordion
The ADX20i is designed for use with Audix wireless systems. The ADX20iP is designed
for use with a standard microphone cable. The ADX20iP operates on phantom
voltage of 5-52 Volts and is supplied with a phantom power adapter (APS910), 6’
integrated microphone cable, gooseneck clip (MC20i) and carrying pouch.
Features:
- Miniature condenser clip-on microphone
- Can be used wired or wireless
- Natural, accurate sound reproduction
- Butterfly type clip ideal for brass instruments
- Rubber shock mount system reduces vibration
- Designed, assembled & tested in the USA
- Transducer Type: Pre-Polarized Condenser
- Frequency Response: 40 Hz - 20 kHz
- Polar Pattern: Cardioid
- Output Impedance: 250 ohms
- Sensitivity:
- Cardioid: - 6 mV / Pa @ 1k
- Hypercardioid: - 5.6 mV / Pa @1k
- Equivalent Noise Level: <29 dB (A-weighted)
- Signal to Noise Ratio: >65 dB
- Maximum SPL: ≥135 dB
- Power Requirements: 9-52 V phantom
- Connector: Shielded 6’ terminating to a miniature 3 pin XLRf
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
- Materials / Finish: Machined Brass Capsule / Black Finish
- Weight: 48 g / 1.7 oz
- Length: 29 mm / 1.14 in
- Contents:
- 1 x ADX20iP Instrument Microphone
- 1 x MC20i Microphone Clip
- 1 x WS20 External WindscreenÂ

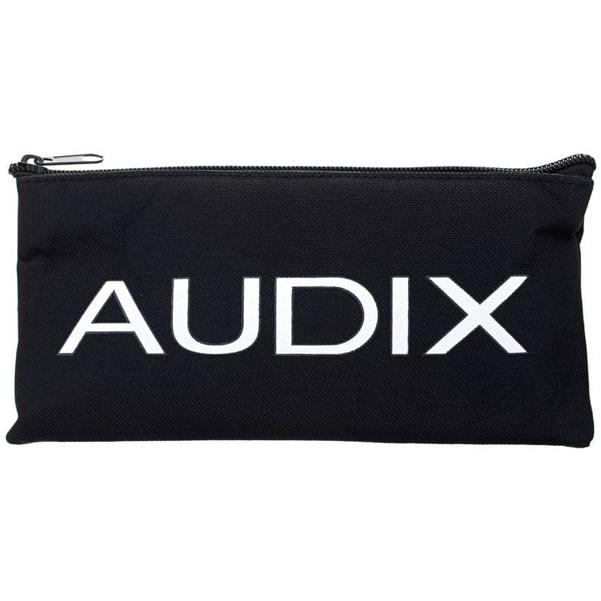

- 1 x P1 Carrying Pouch
- 1 x APS910 Phantom Power Adapter
