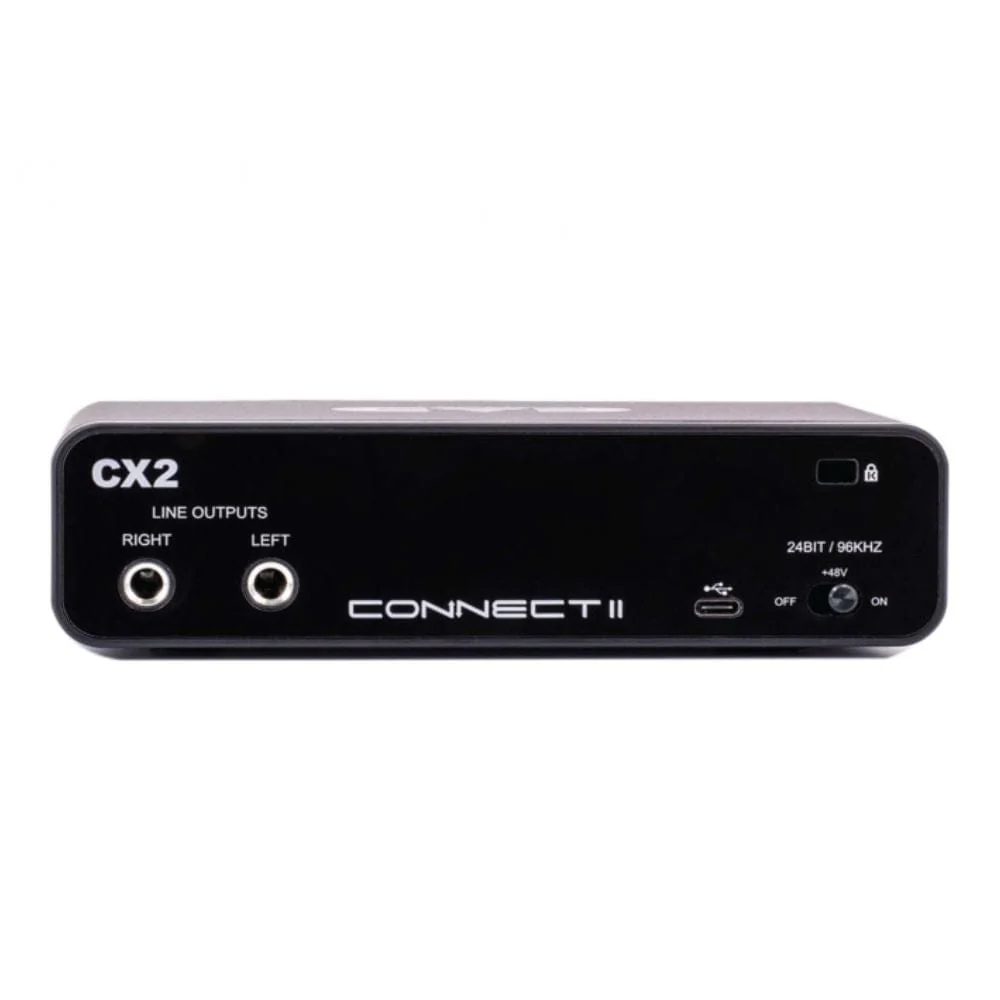

CAD Audio CX2 Connect 2x2 USB Audio Interface

CAD Audio CX2 Connect 2x2 USB Audio Interface Overview:



Record at home or on the go with the CAD Audio Connect II USB Audio Interface. The Connect II features 2 XLR combo inputs which can accommodate either a microphone or instrument-level audio signal making it a perfect solution for the singer/songwriter; or a vocalist with an accompanying instrumentalist. The CX2 offers 48V phantom power and is fully USB powered no external power source required. You’ll get high-quality professional recordings with 24-bit/96kHz digital resolution and the rugged all-metal body is built to withstand the toughest conditions.



Features

• Value-packed 2-channel USB audio interface for home or mobile recording
• Record at professional-level 24-bit/96kHz resolution
• Includes +48V phantom power for use with studio condenser microphones
• USB bus powered
• Two preamps with combo inputs for recording either microphone or instrument-level audio
• Compatible with nearly any recording software on Windows or Macintosh operating systems



Specifications

• Frequency Response: 20Hz – 20kHz
• Resolution/Sample Rate: 24Bit/96kHz
• Phantom Power: +48V
• Dynamic Range: 118dBA
• EIN: -110dBA
• Max Input Level:
• Mic: +8dBu
• Instrument: +11dBu
• Line: +19dBu
• Input Impedance
• Mic: 3k ohms
• Instrument: 1M ohms
• Line: 20k ohms
• Gain Range: 50dB
