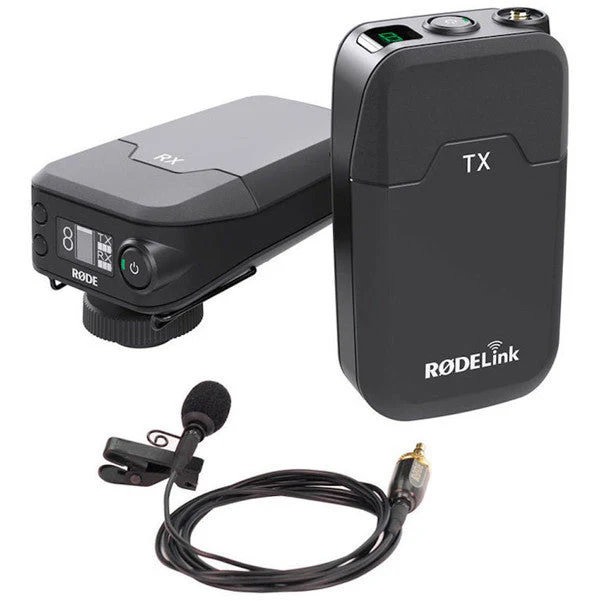

Rode Link Filmmaker Kit Digital Wireless System for Filmmakers

• Series II, 2.4GHz digital transmission
• 128-bit encryption
• Up to 100 metres range*
• OLED display (on receiver)
• One button pairing
• Three level gain control
• AA battery or USB powered
• Includes broadcast lavalier microphone

Rode Link represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The Rode Link Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. Rode  has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.

* range estimations based on optimal environment

Rode Link Filmmaker Kit Specifications

\n
• Transmission type :2.4GHz Fixed Frequency Agile System
\n
• System dynamic range :112dB
\n
• Range (distance) :Up To 100m
\n
• Frequency range :35Hz - 22kHz
\n
• Maximum output level :1v Rms (2.8v P-p)
\n
• Max input signal level :1v Rms (2.8v P-p)
\n
• Max latency :4ms
\n
• Receiver (RX-CAM)
\n
• Power source :2 X AA Battery Or MicroUSB
\n
• Antenna :Internal
\n
• Output connection :3.5mm TRS Locking Jack Socket - Dual Mono
\n
• Output impedance :300Ω
\n
• Dimensions :111mm X 65mm X 52mm
\n
• Weight :190gm
\n

\n
Transmitter (TX-BELT)
\n

\n
• Power source :2 X AA Battery Or MicroUSB
\n
• Antenna :Internal
\n
• Input connection :3.5mm TRS Locking Jack Socket
\n
• Input impedance :10kΩ
\n
• Dimensions :111mm X 65mm X 40mm
\n
• Weight :190gm
\n

\n
Lavalier
\n

\n
• Acoustic Principle :Permanently Polarized
\n
• Active Electronics :JFET impedance converter
\n
• Capsule :0.10"
• Address Type :End
• Frequency Range :60Hz - 18kHz
• Output Impedance :3000Ω
• Maximum SPL :110dB SPL (@ 1kHz, 1% THD into 1KΩ load)
• Maximum Output Level :189.0mV
• Sensitivity :-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise Level (A-weighted) :25dB-A
• Weight  :1.00gm
• Dimensions :12.00mmH x 4.50mmW x 4.50mmD
