Sennheiser XSW D PEDALBOARD SET Digital Wireless Pedalboard Guitar System

Sennheiser XSW D PEDALBOARD SET Digital Wireless Pedalboard Guitar System Overview:

XS Wireless Digital Pedalboard Set. One-touch ease-of-use wireless audio set with XSW-D 6.3mm (1/4”) transmitter, XSW-D Pedalboard receiver, receiver power supply, extension cable 6.3mm (1/4”), belt clip and USB-C to USB-C charging cable
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.

Features:

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
• Mute from either transmitter or receiver

Specifications:

• Dimensions:

1. XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
2. XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
3. XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
4. XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
5. XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
6. XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
7. XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

• THD, total harmonic distortion: < 0.1 %
• Charging time: typ. 3 h
• Audio output: max. 12 dBu
• Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Signal-to-noise ratio: ≥ 106 dB
• Operating time: up to 5 h
• Modulation: GFSK with TDMA
• Battery Specification: Li-Ion
• Capacity: 850 mAh
• Codecs: aptX Live
• Frequency range: 2,400 - 2,483.5MHz
• Max. Input voltage: typ. 5.0 V
• Transmission power: max. 10 mW
• Voltage: 3.7 V
• Operating relative humidity: 95 % (non-condensing)
• Latency: < 4 ms
• Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)
• Audio frequency response

1. 3.5 mm Jack/XLR: 80 - 18,000 Hz
2. 6.3 mm Jack: 10 - 18,000 Hz

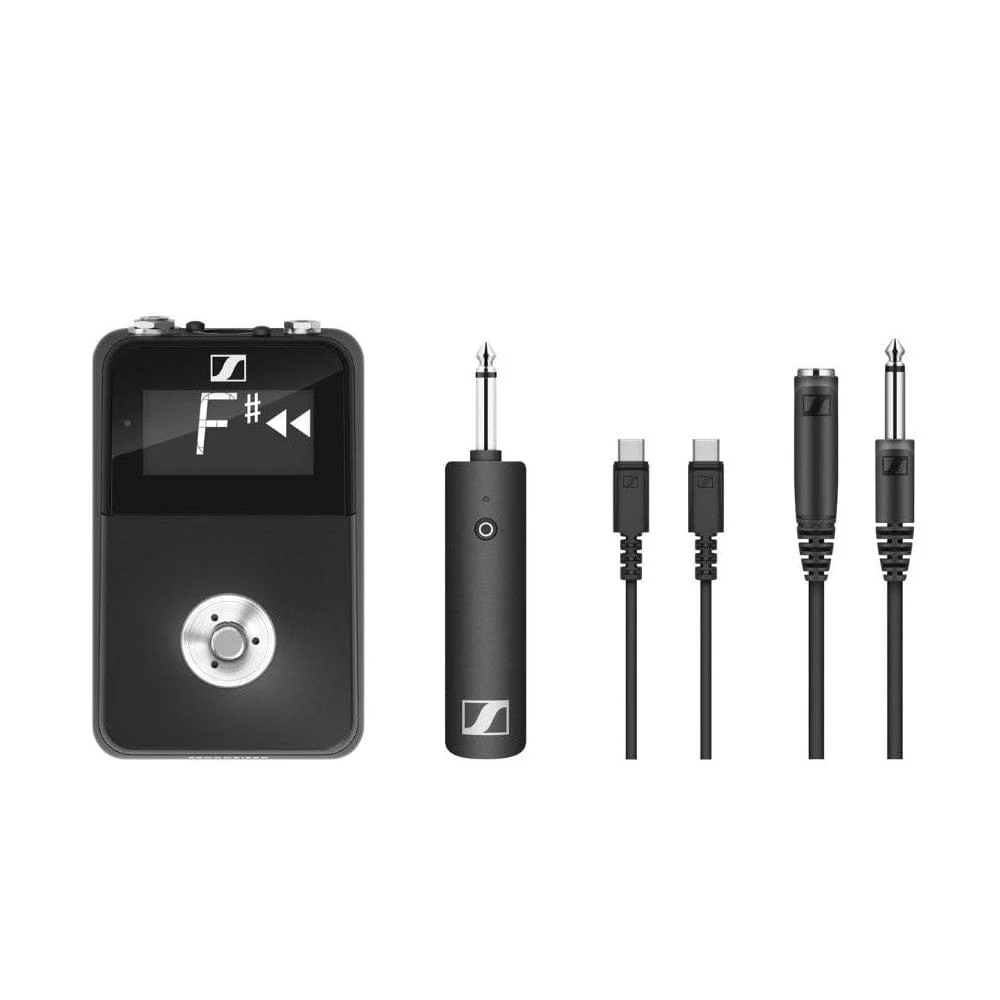

What's in the Box:

• XSW-D 6.3mm (1/4”) transmitter
• XSW-D Pedalboard receiver
• Receiver power supply
• Extension cable 6.3mm (1/4”)
• Belt clip
• USB-C to USB-C charging cable

Made in Germany
